Universal MILLING SYSTEM (UF/E)

Description

PRODUCT DESCRIPTION

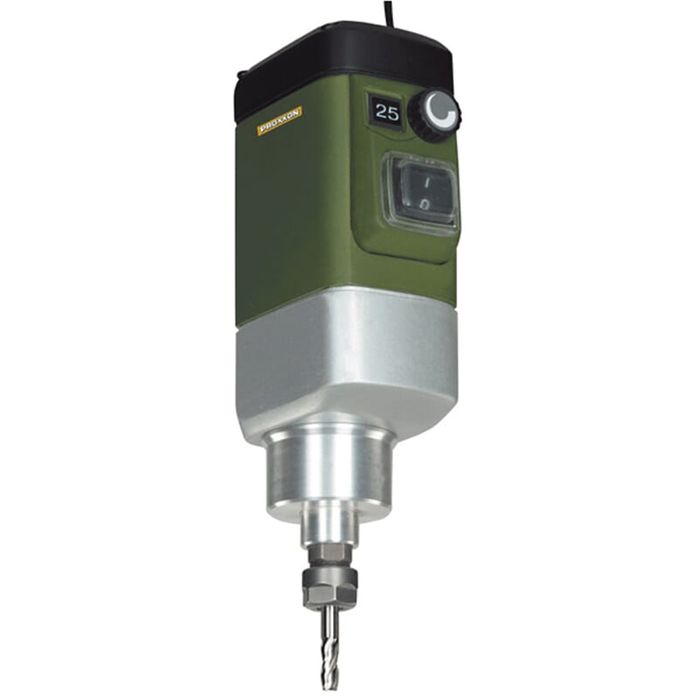

Universal Milling System (UF/E)

Variable speed pre-selection from 10,000 to 30,000rpm and digital speed indication.

The sophisticated control via rotor position and speed sensors guarantees high torque also in the lower speed range.

Machine base made of die-cast aluminium with 20mm MICROMOT standard collar and 43mm European standard spindle collar.

Triple ball bearing spindle for high concentric accuracy and smooth running.

PRODUCT SPECIFICATION

• 230 V. 50/60 Hz.
• 250mm width.
• 10.000 - 30.000rpm.
• Weight: 1200g.
• Includes three ER11 collets according to DIN/ISO in sizes 2.5 - 3.2 (1/8") - 6mm.
