PROXXON

Micro COMPOUND TABLE (KT-70)

Art ID:
27100

Description

PRODUCT DESCRIPTION

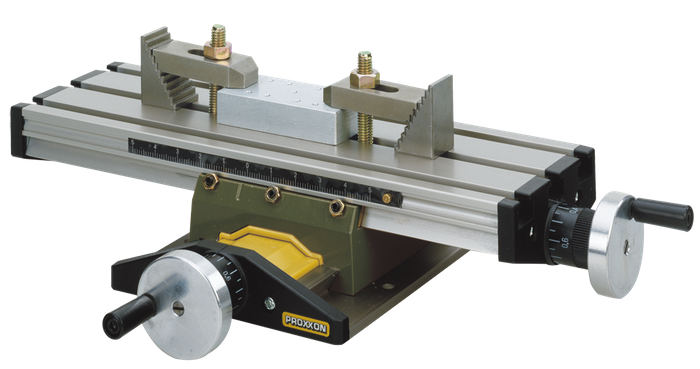

MICRO compound table (KT-70)

Made of solid aluminium with surface treatment and fitted with adjustable dovetail gibs and three T-slots of the MICROMOT standard (12 x 6 x 5mm).

Adjustable ruler eases workpiece positioning. Both handwheels have zero-resettable dials with graduations indicating 1 revolution = 1.0mm and 1 division = 0.05mm.

The clamps and securing bolts for the MB-140/S and TBM-220 are included.

PRODUCT SPECIFICATION

  • Table Size: 200 x 70mm
  • Travel: X travel 134mm, Y travel 46mm
  • Max Height: 43mm
