Precision LATHE ready for CNC Controller (PD-400/CNC-Ready)
Description
PRODUCT DESCRIPTION

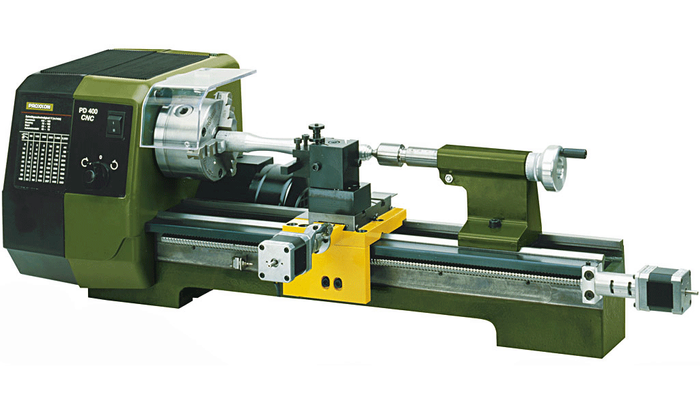

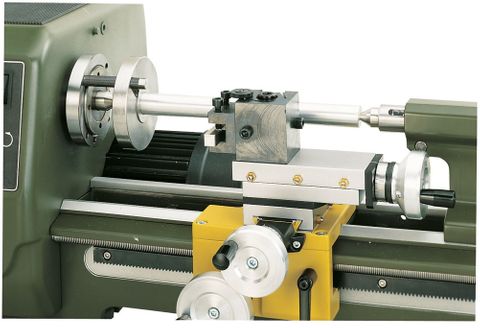

Precision CNC Ready Lathe PD-400/CNC
Axes drive with powerful step motors and recirculating ball spindles (no backlash). For facing and longitudinal turning, for turning balls, radii and any freely formed contours made of steel and nonferrous metal.
Centre distance 400mm. Swing 85mm. Height over cross slide 58mm. For machining steel, brass, aluminium and plastic.
For face and straight turning, taper turning and thread cutting.
With an extensive range of system accessories you can also drill, mill and slot.
Machine bed: Of high quality cross-braced cast iron with wide-legged, prism slides.
For vibration-free work even at high loads. With flange and threaded holes at back for fastening the drill and mill head PF-230.
Covered lead spindle.
Headstock: Of die-cast aluminium. Oversized main spindle with two adjustable taper roller bearings and MK 3 bore on chuck side.
Spindle bore 20.5mm. Run-out without chuck 1/100mm. Rotary switch for engaging the automatic feed (optionally 0.07 and 0.14mm/rev.).
Lead and feed spindle with trapezoid threading (12 x 1.5mm).
Tailstock: Of die-cast aluminium. Sleeve Ø 24mm, retractable up to 40mm. With mm scale.
With live centre MK 2 and 10mm gear tooth chuck (B 12 - bore/MK 2).
Support: Bed carriage made of die-cast zinc. Cross slide (adjustment 85mm) and top slide (setting range 52mm) of steel.
Top slide can be swivelled for taper turning (degree graduation up to 45° available).
With multiple tool posts and two tool post elements for quick change and easy height adjustment.
For turning tools 10 x 10mm.
Drive: Powerful capacitor motor for two speeds and additional three-stage belt drive.
Spindle speeds:
- Stage 1: 80 - 330 - 1,400rpm
- Stage 2: 160 - 660 and 2,800rpm
Lathe chuck: High quality 3-jaw chuck as per DIN 6386 Class 1 (concentricity tolerance 0.04mm).
Capacity through reversing chucks 3 - 100mm. Including lathe chuck guard with safety shutdown.
Handwheels: Of aluminium, with scale ring adjustable to 0.
For cross slide and top slide: 1 division = 0.025mm. 1 rev. = 1mm. For tailstock and lead spindle: 1 graduation line = 0.05mm. 1 rev. = 1.5mm.
Support quick adjustment: By means of large handwheel fastened to bed by toothed rack.
Thread cutting device: For left-hand and right-hand thread. With change gears for 19 different metric pitches: 0.2 , 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5 - 3mm. Also for inch threads from 10 - 48TPI.
PRODUCT SPECIFICATION
- Power: 230V
- Size: 900 x 400 x 300mm
- Weight: 45kg
